Studiologic Numa Compact X SE

Descripción del Studiologic Numa Compact X SE

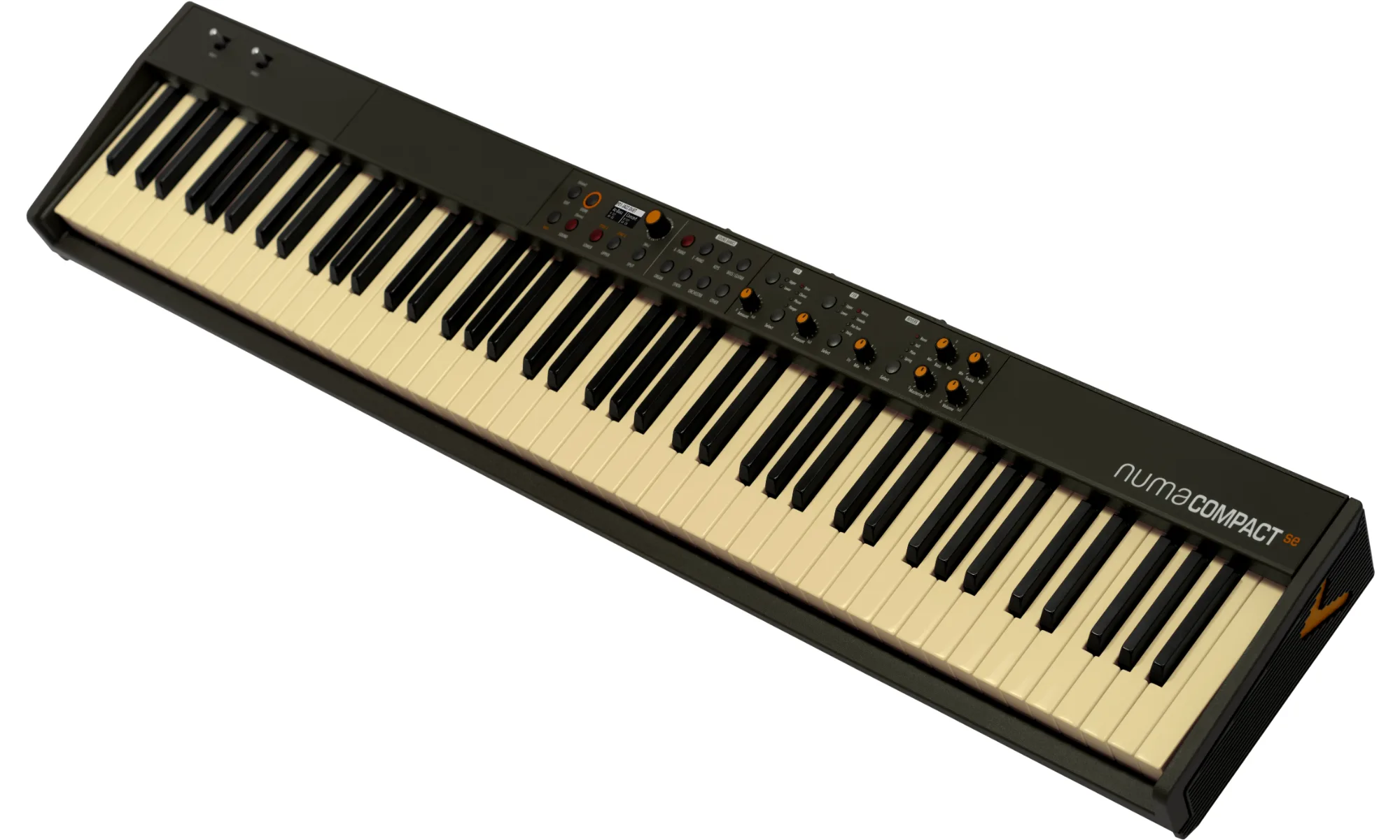

Studiologic Numa Compact X SE

Piano de escenario portátil de 88 teclas con teclado TP/9 semi-contrapesado, aftertouch y altavoces integrados. Incluye 148 sonidos, polifonía de 200 voces, motores dedicados (piano/EP/órgano/sinte) y USB Audio/MIDI.

Nota: Versión X SE con 9 drawbars programables para control en tiempo real (órgano o MIDI).

Teclado

• 88 Keys
• TP/9 PIANO semi-weighted Action
• Dual switch detection system
• Aftertouch
• Ivory look

Respuesta y tacto

• Soft, Medium, Hard, Fixed (programmable)

Generación de sonido

• 148 Factory Sounds
• 12 Acoustic Pianos, 12 Electric Pianos, 12 Keyboards, 16 Basses & Guitars, 24 Organs, 40 Synthesizers, 16 Orchestrals, 16 Others
• Max Polyphony 200 voices
• TrS (True Sound) Stereo multi-samples
• Additional downloadable sounds

Motor acústico

• Strings and Duplex Resonance
• Damper noise
• Hammer noise

Motor eléctrico

• Tine dedicated controls
• Tine sounds for EP, Wurly and FM emulations
• Damper noise

Motor de órgano

• Integrated tone wheel organ model
• Real time control by drawbars and dedicated buttons1

Motor de síntesis

• Integrated waveform generator
• Real time control by sliders and dedicated buttons1

Efectos y procesamiento

• Up to 6 effects simultaneously: 2 FX on Lower + 2 FX on Upper + Reverb + Strings resonance
• Dedicated effects for acoustic piano, electric piano, organ and synth sounds
• FX1: Drive, Chorus, Phaser, Flanger
• FX2: Rotary, Tremolo, Pan Trem, Delay
• REVERB: Room, Hall, Plate, Spring

Funciones y programas

• Sound and Programs
• 120 User programs
• 1GB Samples memory
• 6 Sections
• 2 Sounds in Layer or Split mode
• 2 Sounds (additional) from MIDI/USB
• 2 MIDI Zones in Layer or Split mode
• Edit functions
• Global, Program, Part, Mixer (Lower / Upper / Zone A / Zone B volume control)
• Master controls: Bass, Treble, Mastering, Volume

MIDI

• 2 Programmable Zones – A/B
• Program Change, Bank Select (LSB, MSB), MIDI Channel, Volume, Split assign, Transpose, Octave
• Pedals 1-2 assign, Sticks 1-2 assign
• 9 assignable sliders1

Sistema de altavoces

• 10 + 10W built-in digital Amplifier
• 2 Elliptical full range speakers2

Controles y pantalla

• OLED display 128 x 64 dots
• Encoder with push function
• 7 potentiometer
• 23 buttons
• 9 drawbars | sliders1

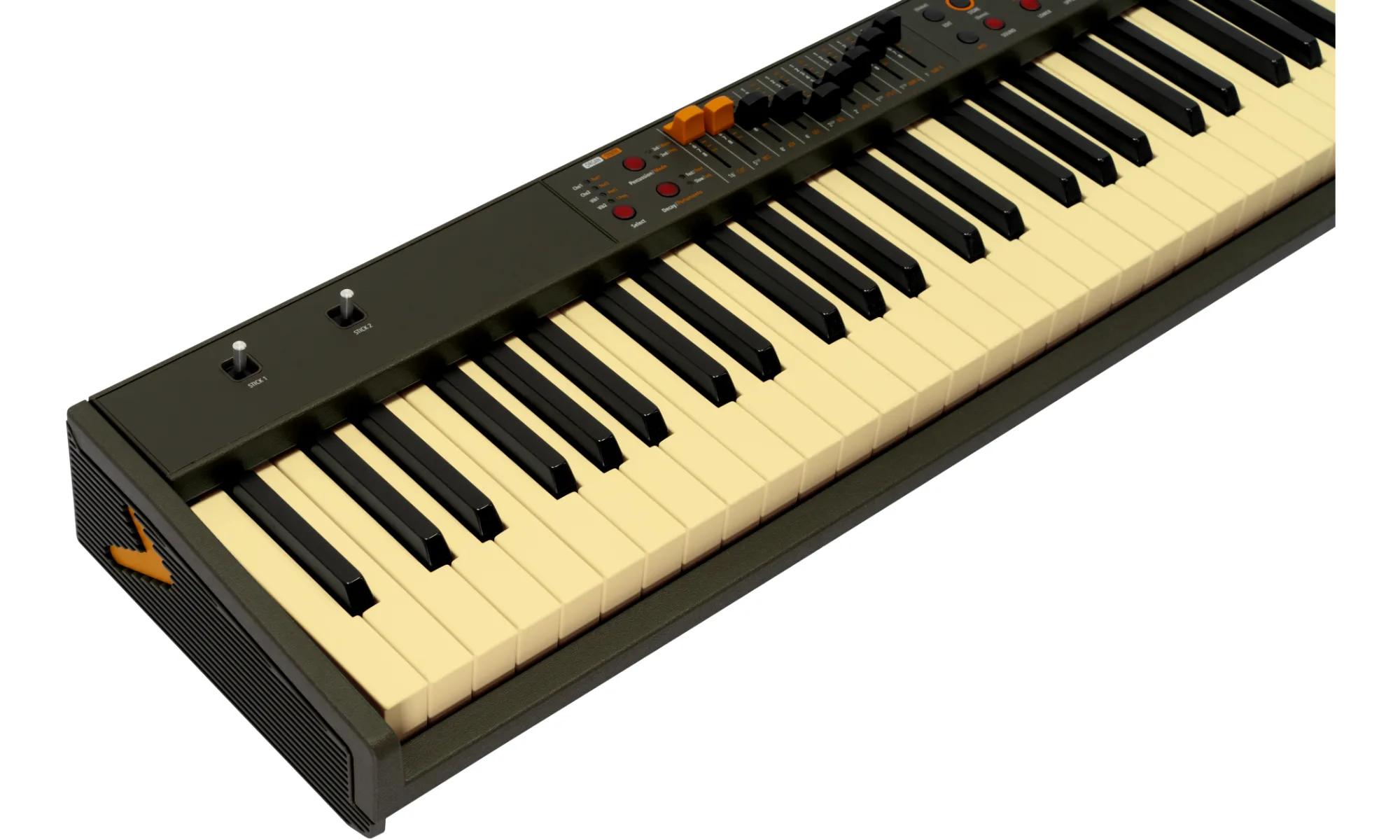

Sticks

• Stick 1: Pitch
• Stick 2: Mod + FX Control

Conexiones

• Audio OUT: 2x 6,3 mm mono jack (L+R)
• Headphones: 6,3 mm TRS jack (programmable as Aux out)
• Pedals: Expression, Universal
• MIDI: In, Out
• USB: Audio, MIDI, power2, Numa Manager

Alimentación

• DC IN: 12V
• Input: 100-240V / Output: 12V-2,5A

Dimensiones y peso

• Ancho: 127 cm
• Fondo: 23 cm
• Alto: 10 cm
• Peso: 7,1 kg

Contenido del paquete

• Numa Compact SE / Numa Compact X SE
• USB cable
• Power adapter

Accesorios compatibles

• PS/1003, PS/1503, PS/2503
• VFP1/103, VFP1/153, VFP1/253
• SLP3-D
• VP/27
• FP/50
• Softcase size A
