KORG WAVESTATE SE

Product Overview

Keyboard

61 keys (Natural touch keyboard with velocity and release-velocity sensitivity, aftertouch).

Sound Generating System

Wave Sequencing 2.0.

Maximum Polyphony

120 stereo voices.

Sounds

Ships with 261 Performances, 799 Programs, and 1,042 Wave Sequences. Storage for tens of thousands of user Performances.

Structure

Performance: 4 Layers, Reverb, EQ; all edits are stored in the Performance, DAW-style (saving as separate Programs, Wave Sequences etc. is supported but not required).

Layer: Program, Arpeggiator, Key and Velocity Zones.

Program: Wave Sequence, Filter, Amp, Pre FX, Mod FX, Delay.

Filters

Includes 2-pole and 4-pole LPF, HPF, BPF, Band Reject, Multi Filter, MS-20 LPF, MS-20 HPF, Polysix.

Modulation

• Controllers: Mod Wheel, Pitch Wheel, Vector Joystick X/Y, 8x Program/Performance Mod Knobs.
• Other Sources: 3x Envelopes, Vector Envelope, 3x LFOs, 2x Mod Processors, 2x Key Track, Step Sequencer Lane, Step Pulse, Tempo, Program/Performance Note Count, Program/Performance Voice Count, Poly Legato, Velocity, Exponential Velocity, Release Velocity, Gate/Gate+Damper, Note-On Trigger/Note-On Trigger+Damper, Note Number, Aftertouch/Poly Aftertouch (external MIDI only), MIDI CCs +/-, MIDI CCs +.
• Destinations: Most parameters can be modulated, including parameters of individual Wave Sequence Steps. Depending on Wave Sequence length, there can be more than 1,000 potential modulation targets per Program.

Effects

• Pre FX: Decimator, Graphic EQ, Guitar Amp, Modern Compressor, Parametric EQ, Red Compressor, Ring Modulator, Tremolo, Wave Shaper.
• Mod FX: Black Chorus/Flanger, Black Phase, CX-3 Vibrato Chorus, EP Chorus, Harmonic Chorus, Modern Chorus, Modern Phaser, Orange Phase, Polysix Ensemble, Small Phase, Talking Modulator, Vintage Chorus, Vintage Flanger, Vintage/Custom Wah, Vox Wah.
• Delay: L/C/R Delay, Multiband Mod Delay, Reverse Delay, Stereo/Cross Delay, Tape Echo.
• Reverb: Early Reflections, Overb.
• Performance EQ: 4-band parametric EQ.

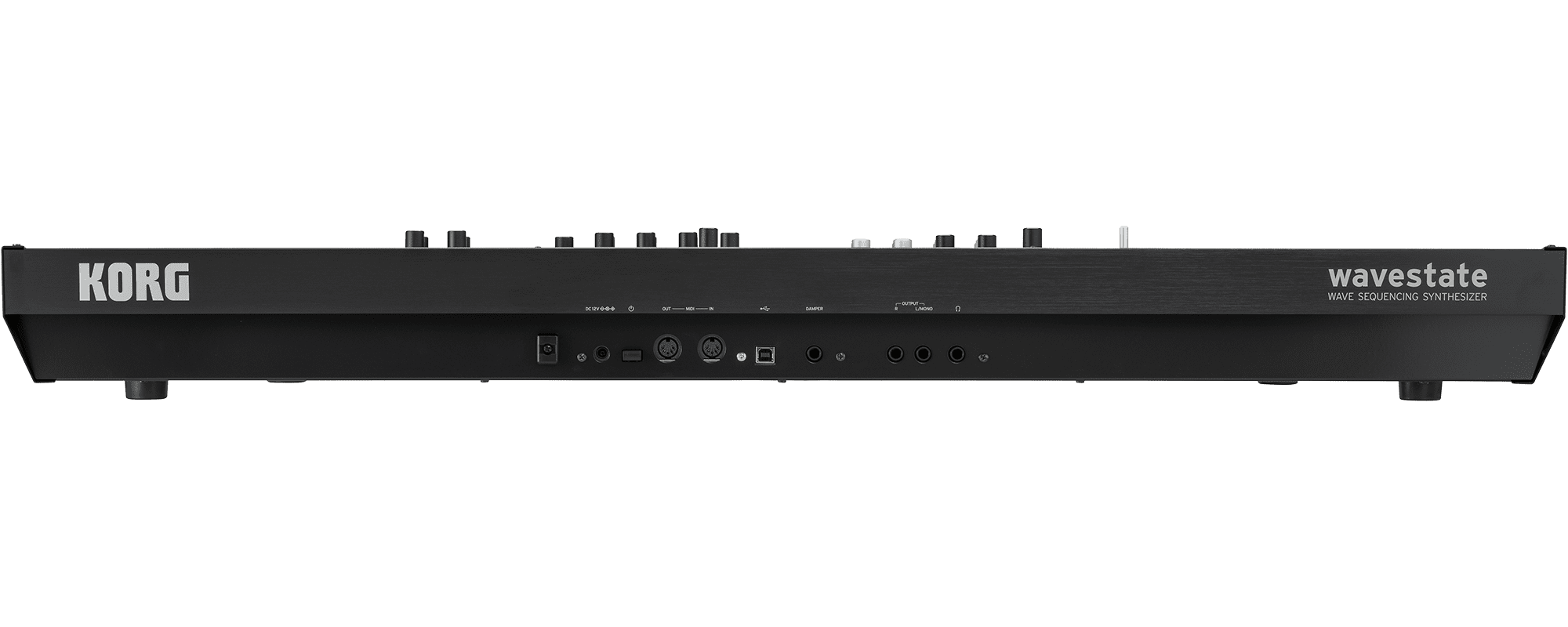

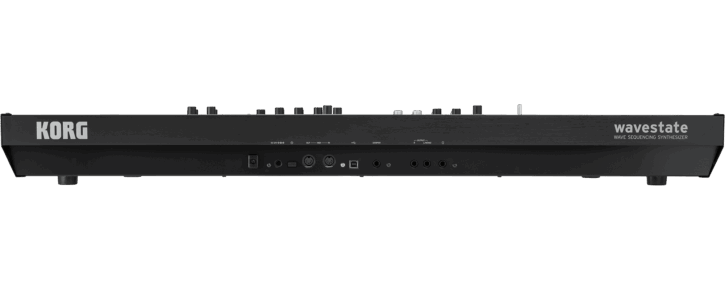

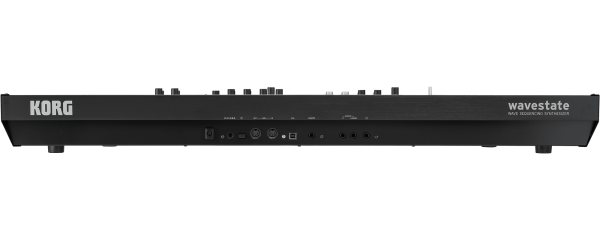

Inputs/Outputs

• Headphone (6.3 mm stereo phone jack).
• OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks).
• DAMPER (6.3 mm phone jack).
• MIDI IN and OUT connectors.
• USB B port.

Power Supply

AC adapter (DC12V, 2500mA), power consumption: 5 W.

Dimensions and Weight

Dimensions (W x D x H): 1,014 x 344 x 110 mm / 39.92” x 13.54” x 4.33”. Weight: 8.6 kg / 18.96 lb.

Included Items

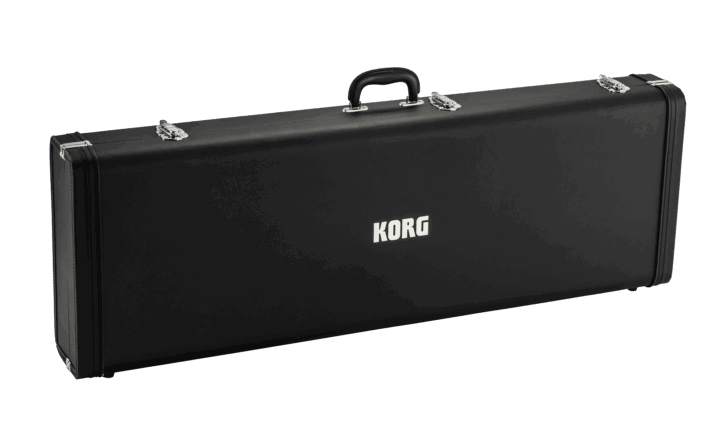

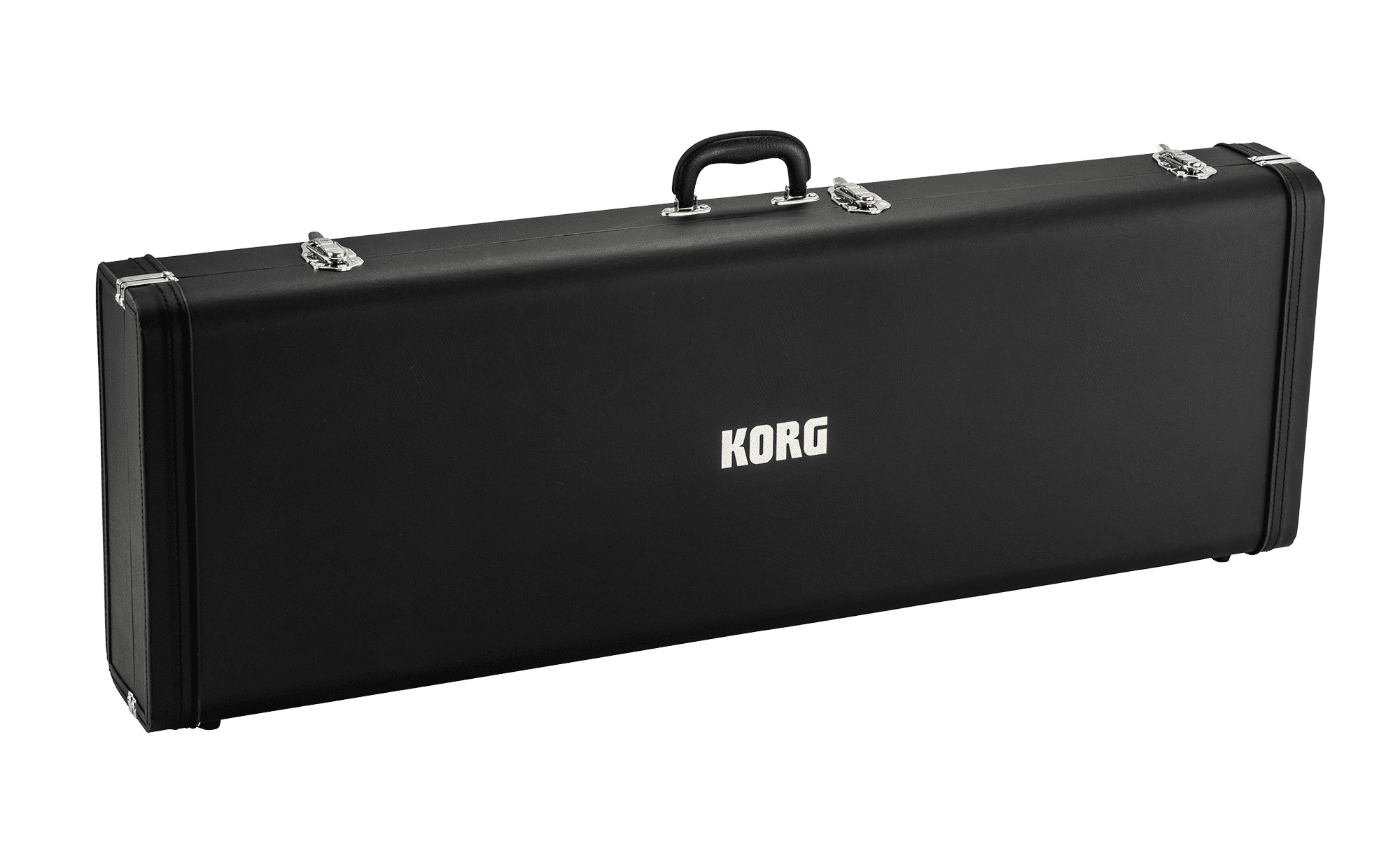

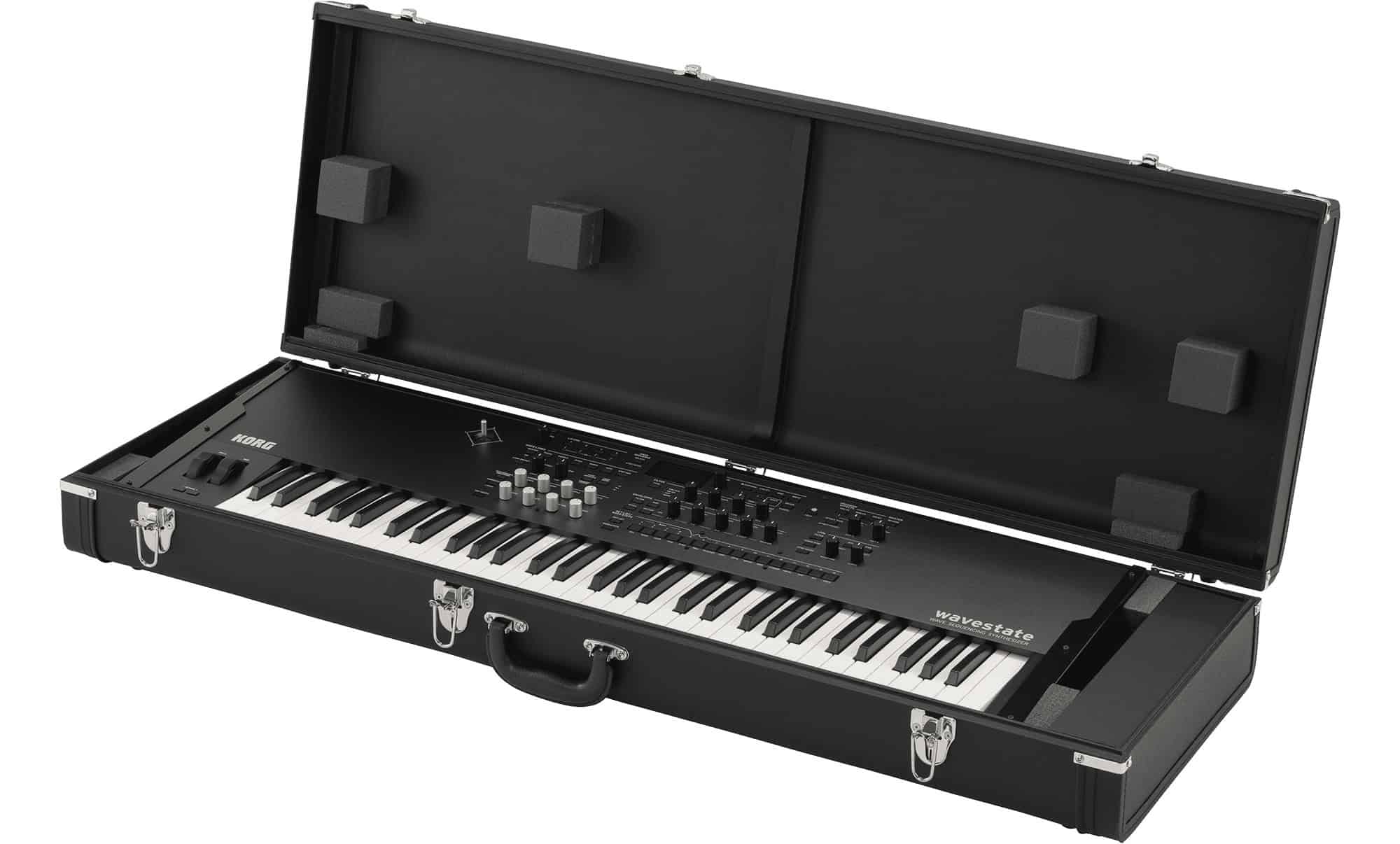

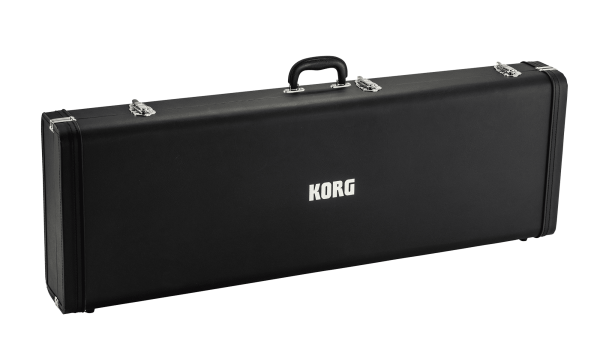

AC adapter, Hardcase.
