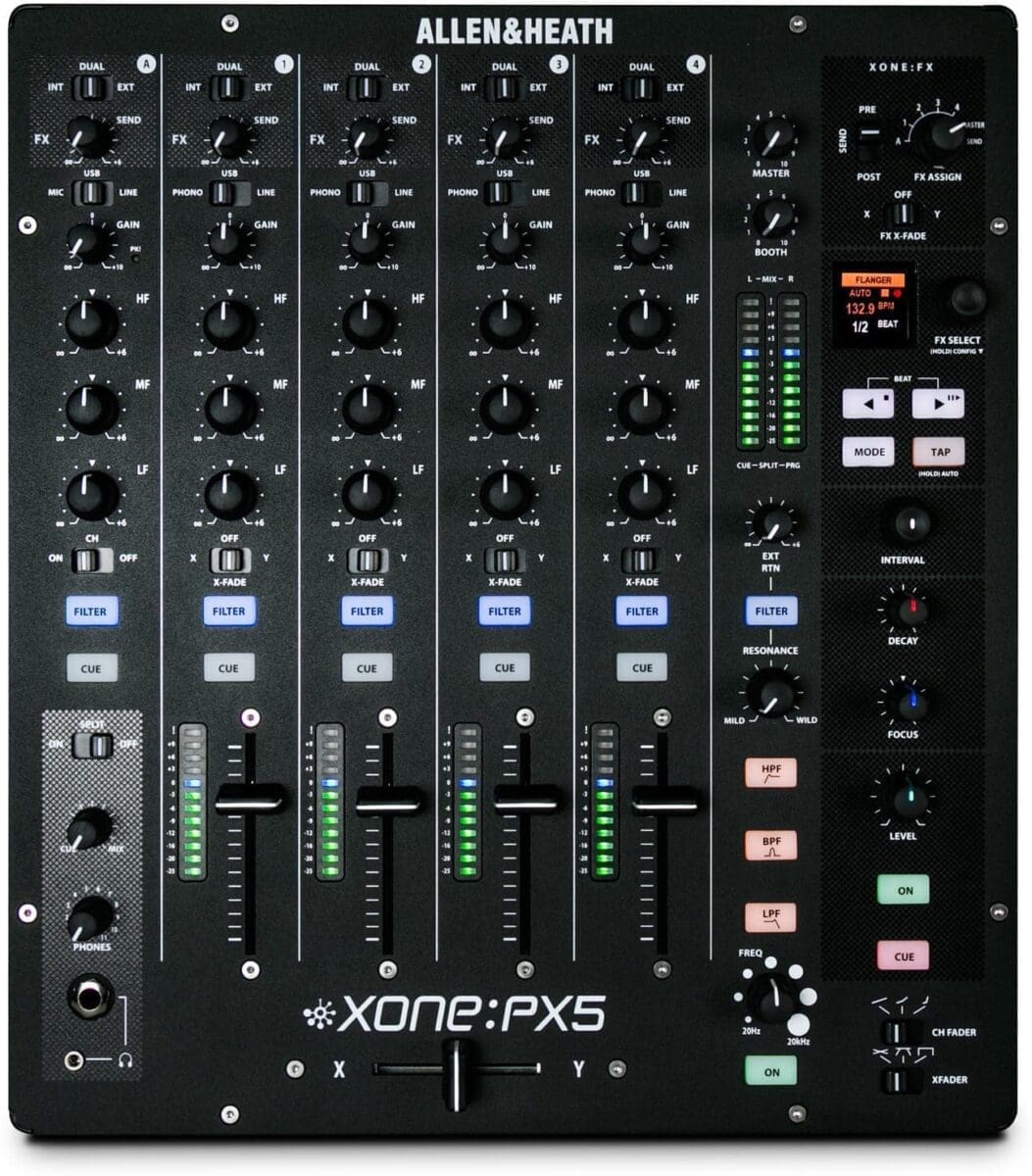

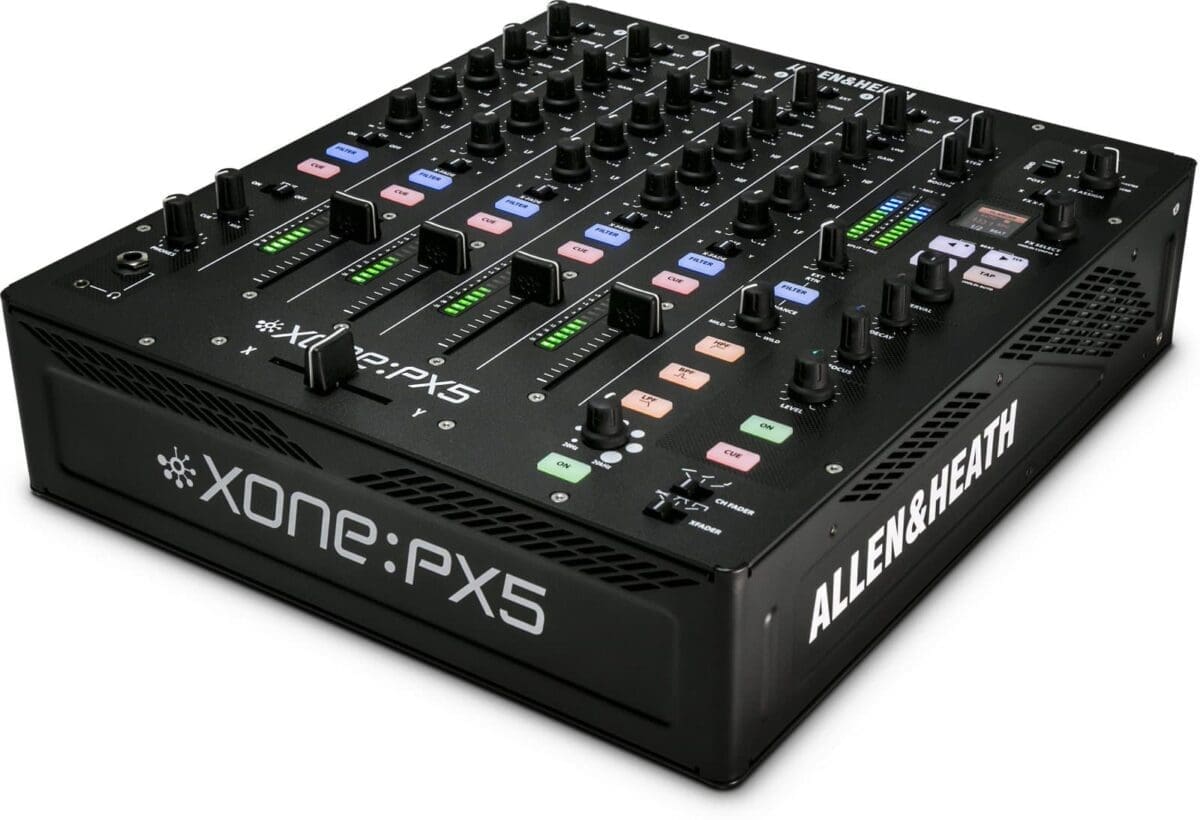

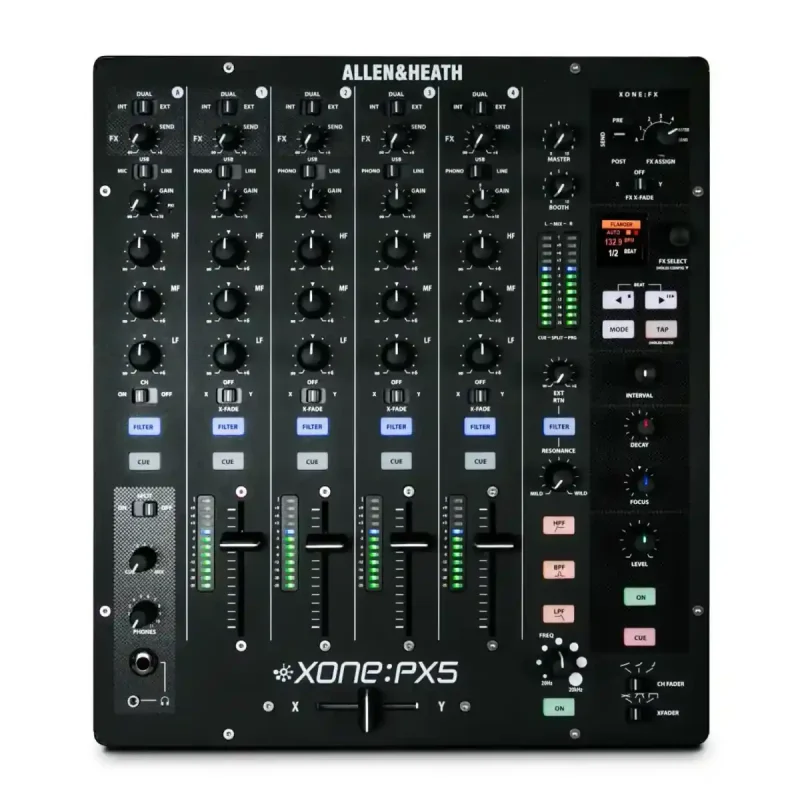

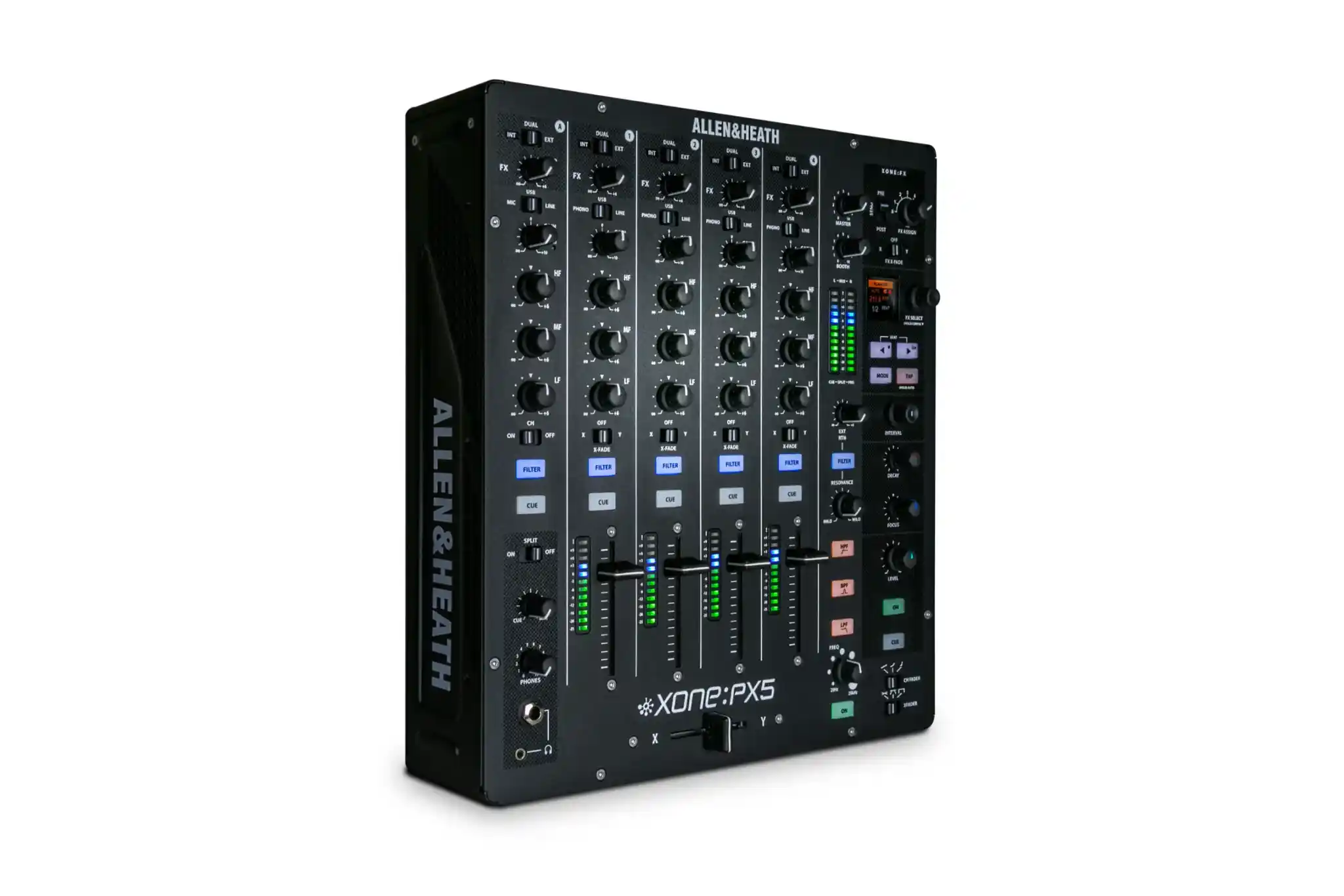

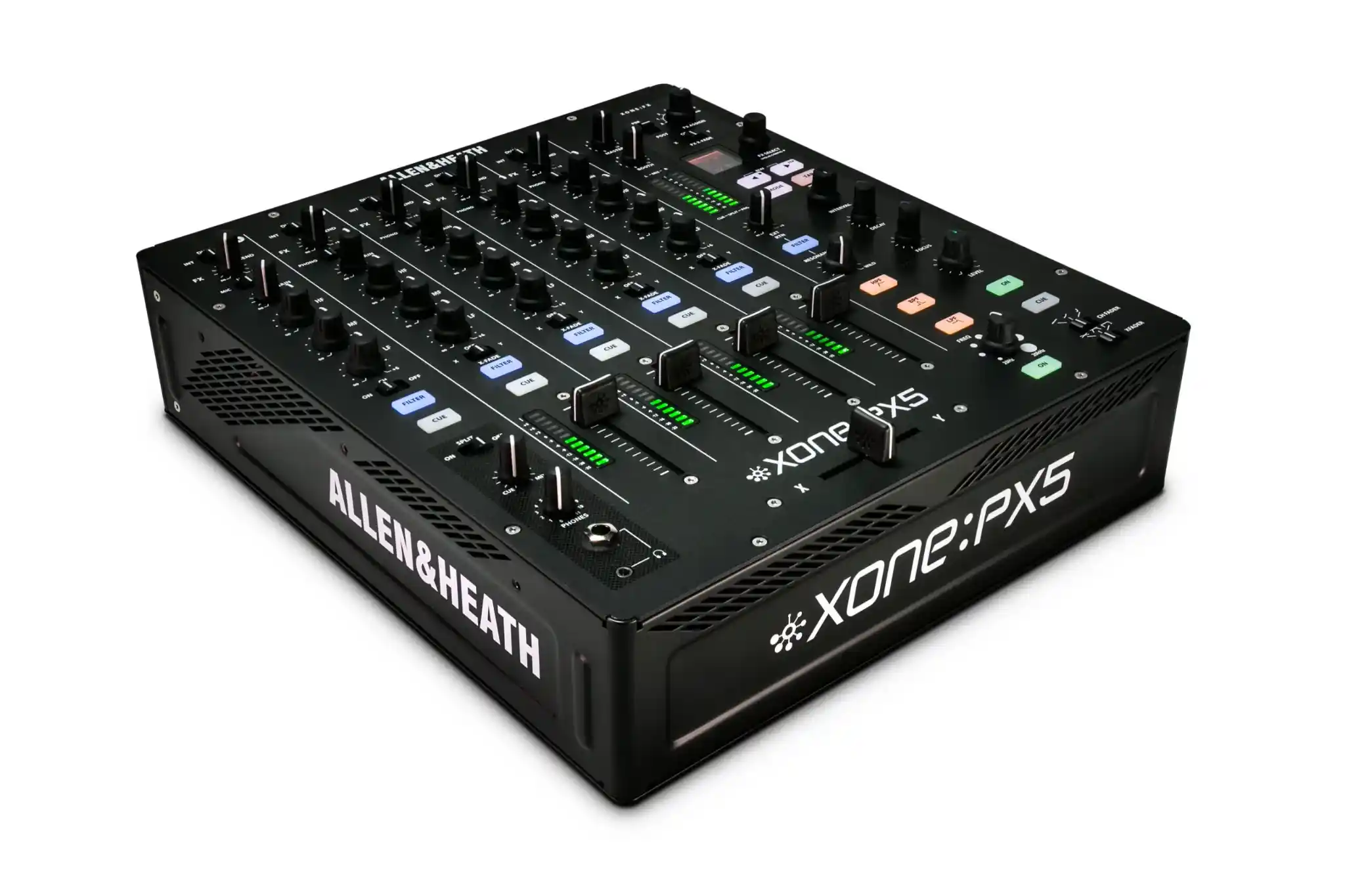

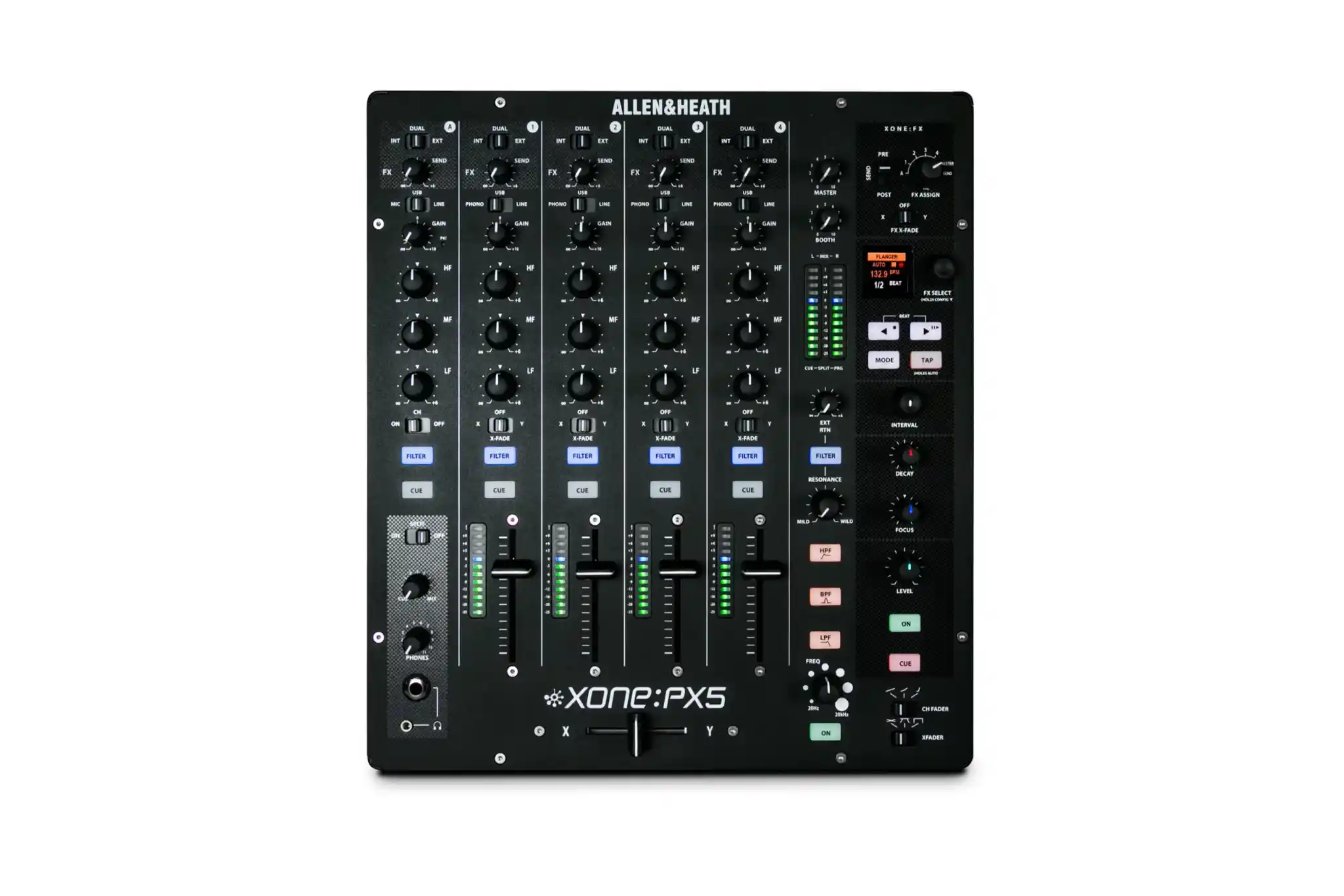

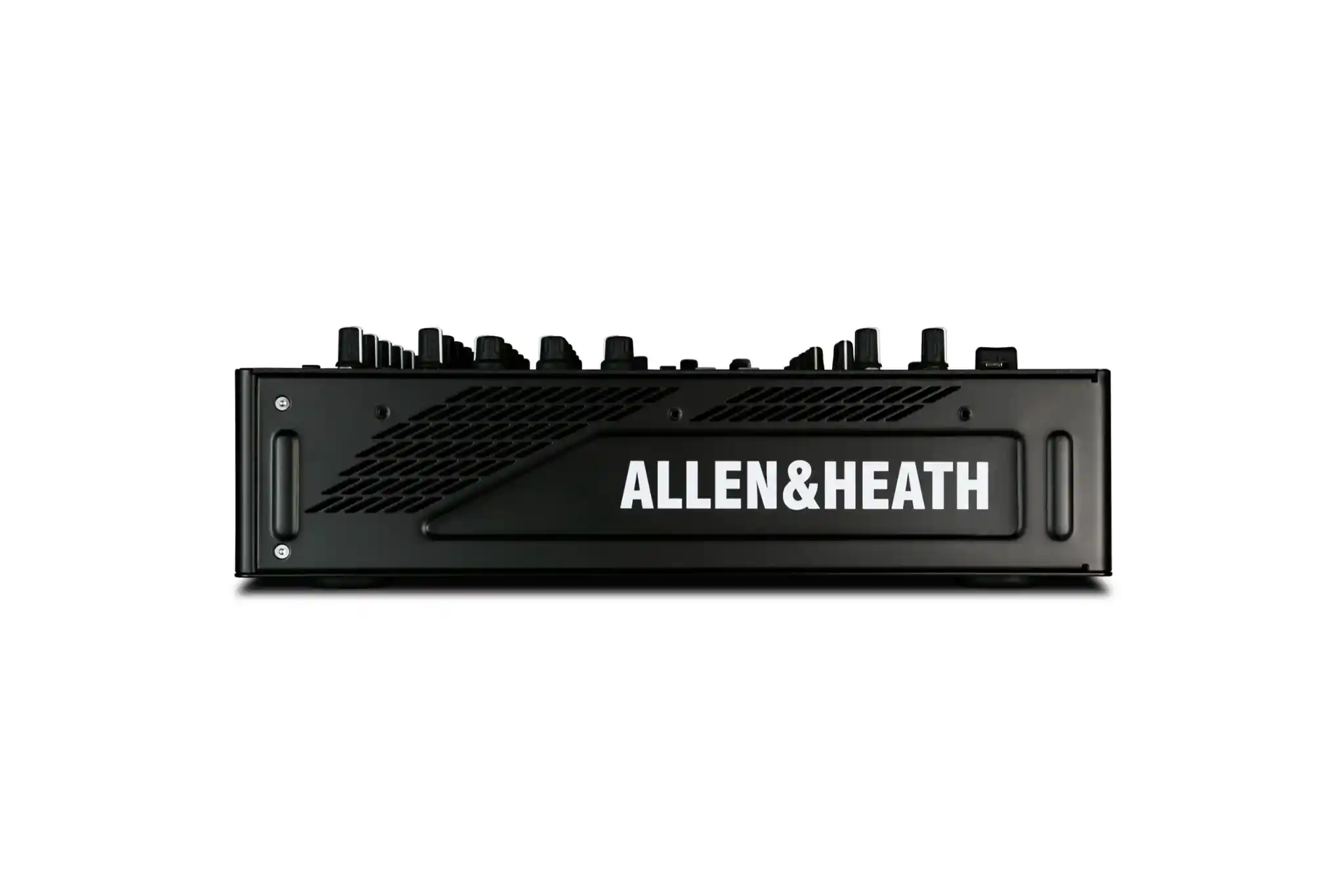

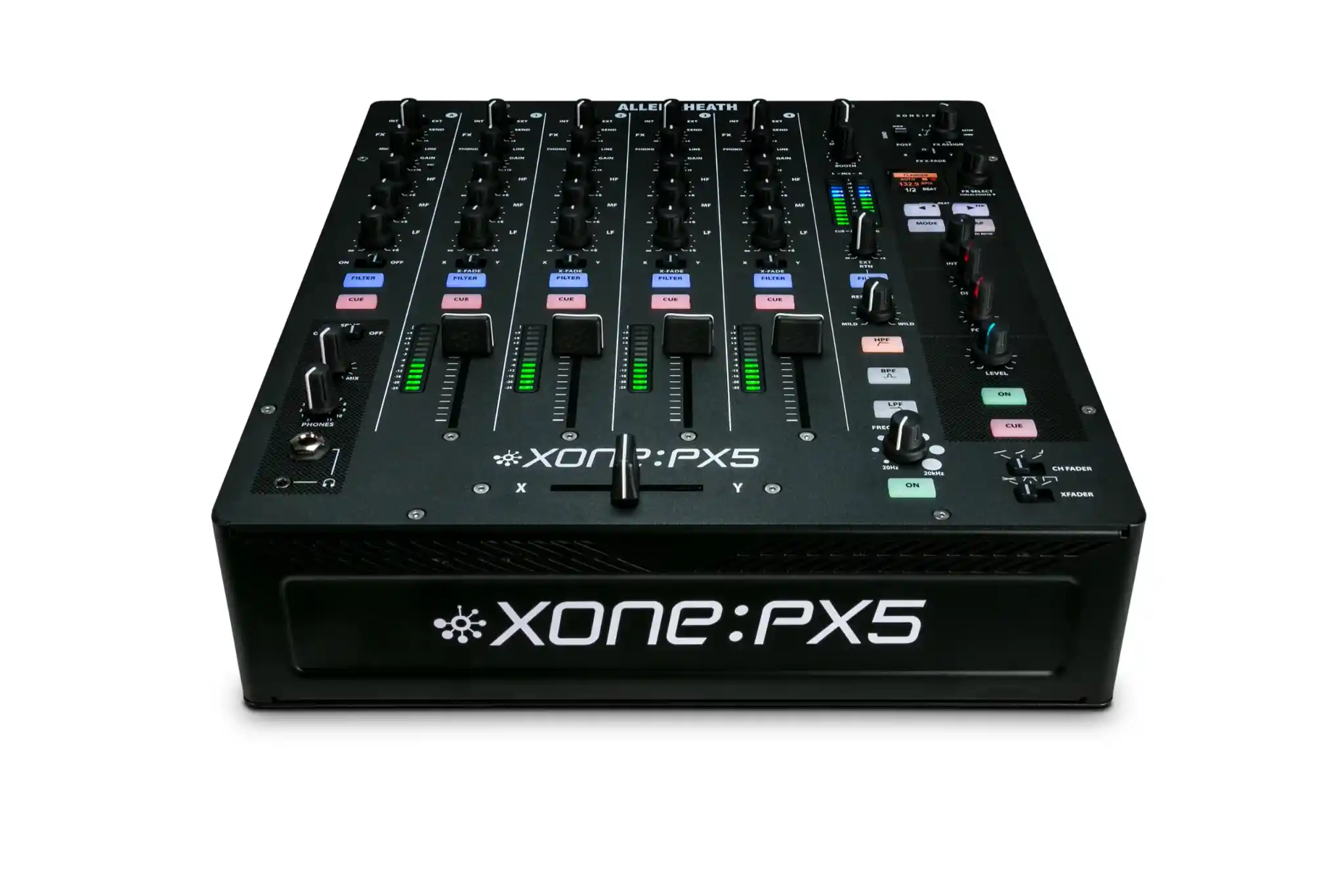

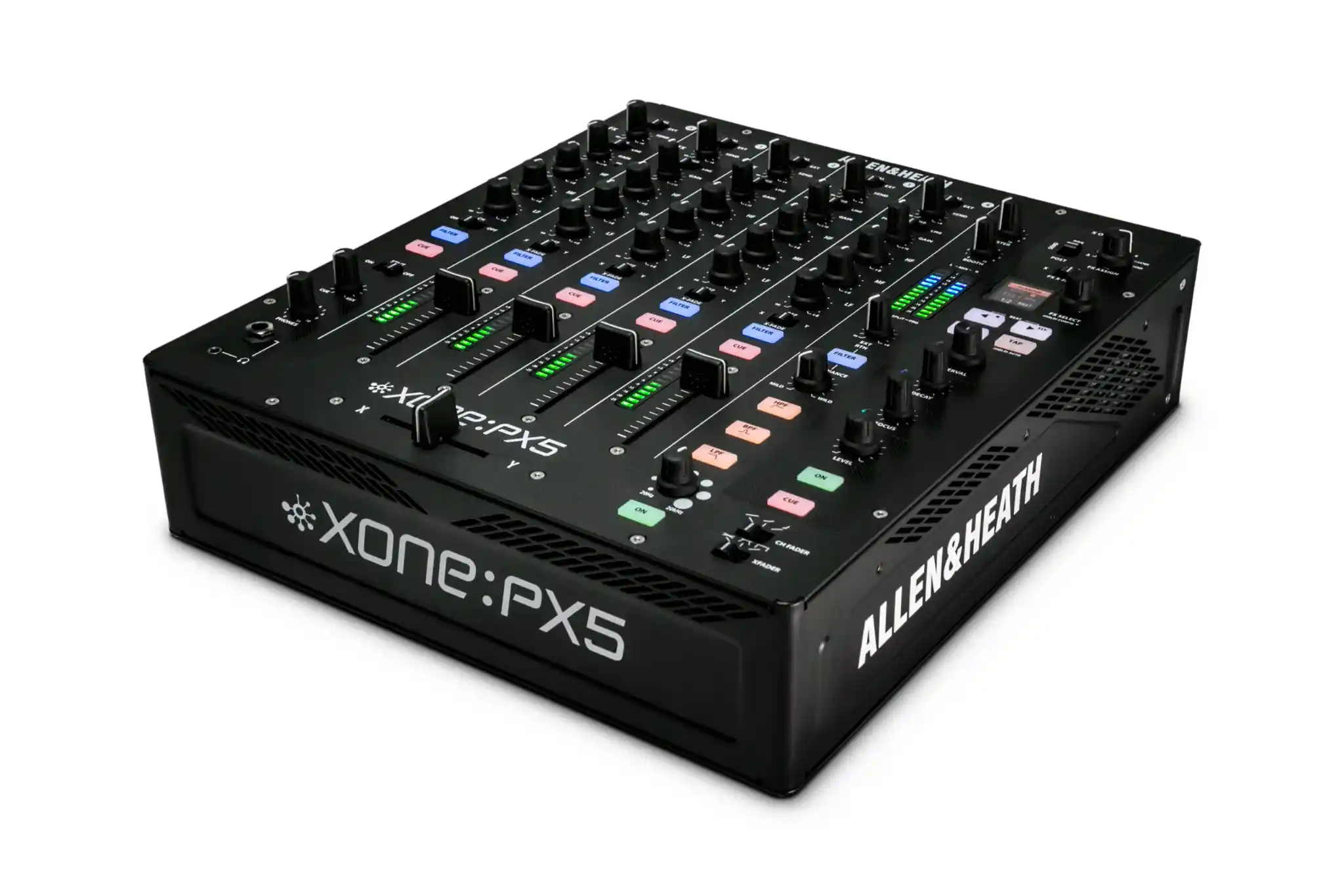

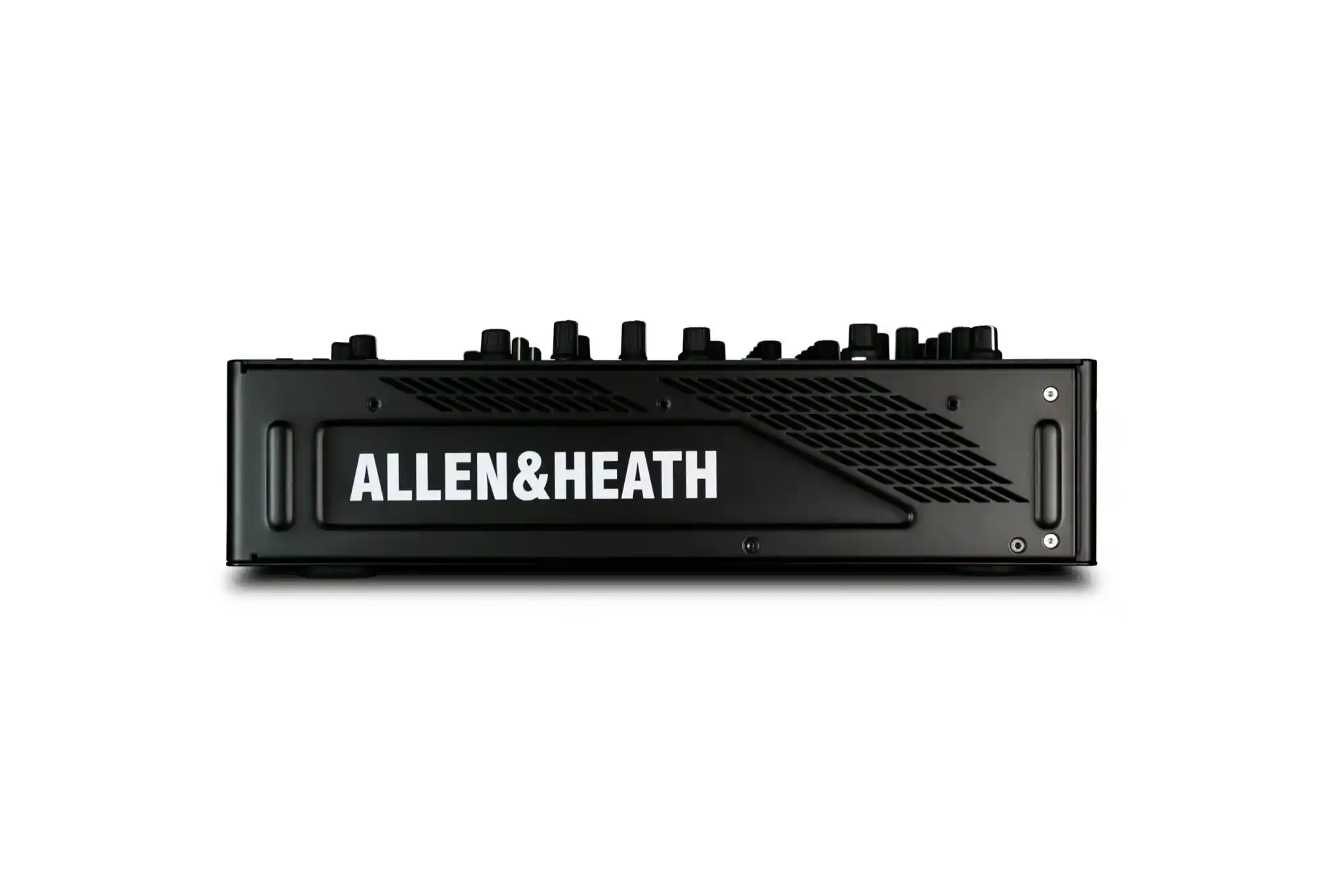

Allen & Heath Xone:Px5

• Tipo: Analógico.
• Canales 4 + 1.
• EQ 3-band / Total Kill (CH 1-4 + CH A).
• Tarjeta de sonido USB 20 canales (10 in / 10 out).
• USB2 / Class Compliant.
• 24bit / 96kHz.
• 1 x MIDI IN.
• 1 x MIDI Out.

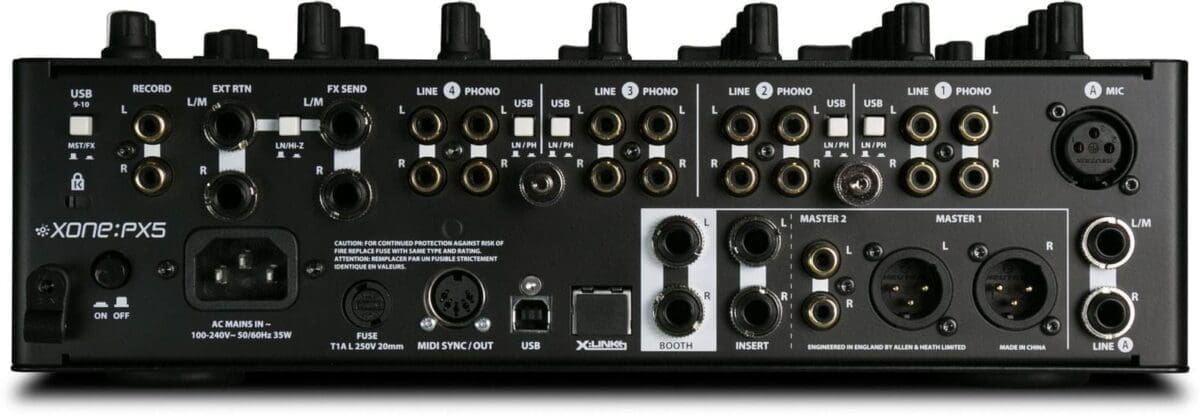

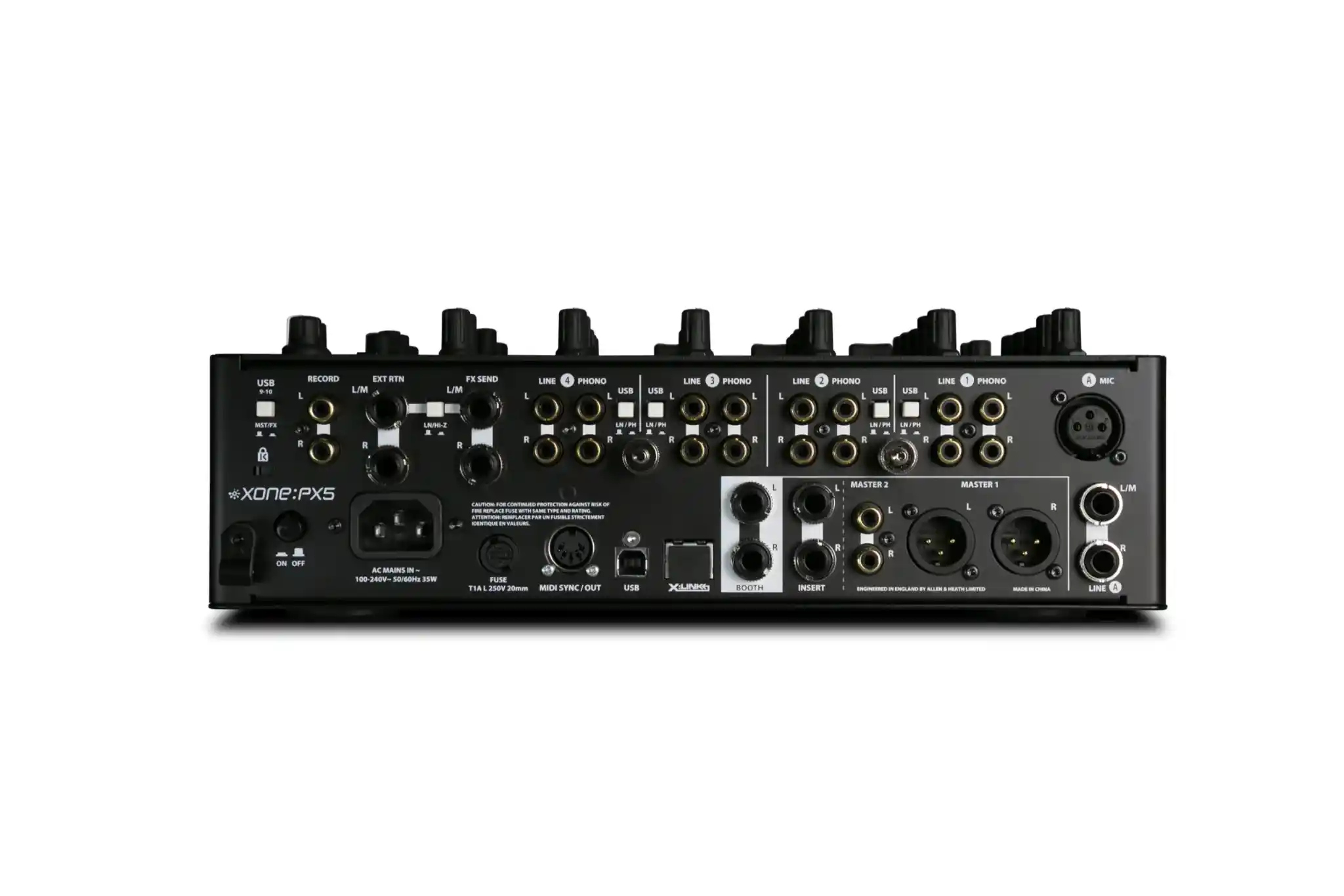

• Line Inputs 4 x RCA (CH 1-4).
• 1 x 1/4″ TRS (CH A) Mono/Stereo.
• Phono Inputs 4 x RCA (CH 1-4).
• LN/PH Switch for DVS.
• USB Inputs 5 x USB (CH 1-4 + CH A).
• Mic Input 1 x XLR.
• Master Output 1 x XLR (Balanced).
• Master 2 Output 1 x RCA (Un-balanced).
• Booth Output 1 x 1/4″ TRS.
• Record Output 1 x RCA (Un-balanced).
• Master Insert 1 x 1/4″ TRS.
• MIDI Sync/Out 1 x 5-Pin DIN.
• DIN Offset Control.
• Send/Return I/O.
• 1 x 1/4″ TRS Send.
• 1 x 1/4″ TRS Return.
• 1 x LN/Hi-Z Switch.
• Internal Xone: FX Yes.
• Hybrid FX Mode Yes (Internal External).
• FX Send 1 x Pre/Post Selectable (CH 1-4 + CH A).
• MIDI Clock Send + Receive.
• Start / Stop / Pause / Tempo Bend (-/+).
• MIDI Assignable Yes (MIDI CC / MIDI Notes).
• BPM Detection Auto / Manual / Tap Tempo.
• Earth Ground Terminals x 2.
• Headroom 20dB.
• AC Mains.
• 100 to 240V.
• AC 50/60Hz.
• Consumo 35W max.
• Mains Adaptor 3 pin IEC socket with cable clamp.
• Fuse Rating 250V AC T1AL 20mm.

Filtro:

• 1 x VCF Filter.
• HPF / BPF / LPF.
• Adjustable Frequency & Resonance.
• Assignable CH 1-4 + CH A + External Return.
• X-Link 1 x RJ45.

Auriculares:

• 1 x 1/4″.
• 1 x 3.5mm.
• Split Cue Monitoring.
• Channel Faders 60mm VCA / Replaceable.
• Chanel Meters 12 Segment LED.
• Channel Fader Curve 3 Types.
• X-Fader 45mm VCA / Replaceable / Innofader Compatible.
• X-Fader Curve Settings 3 Types.
